Details：
Steel raw materials comply with the provisions of GB/T325.1
The high-density polyethylene used as the main raw material for the plastic inner liner
Introduction:

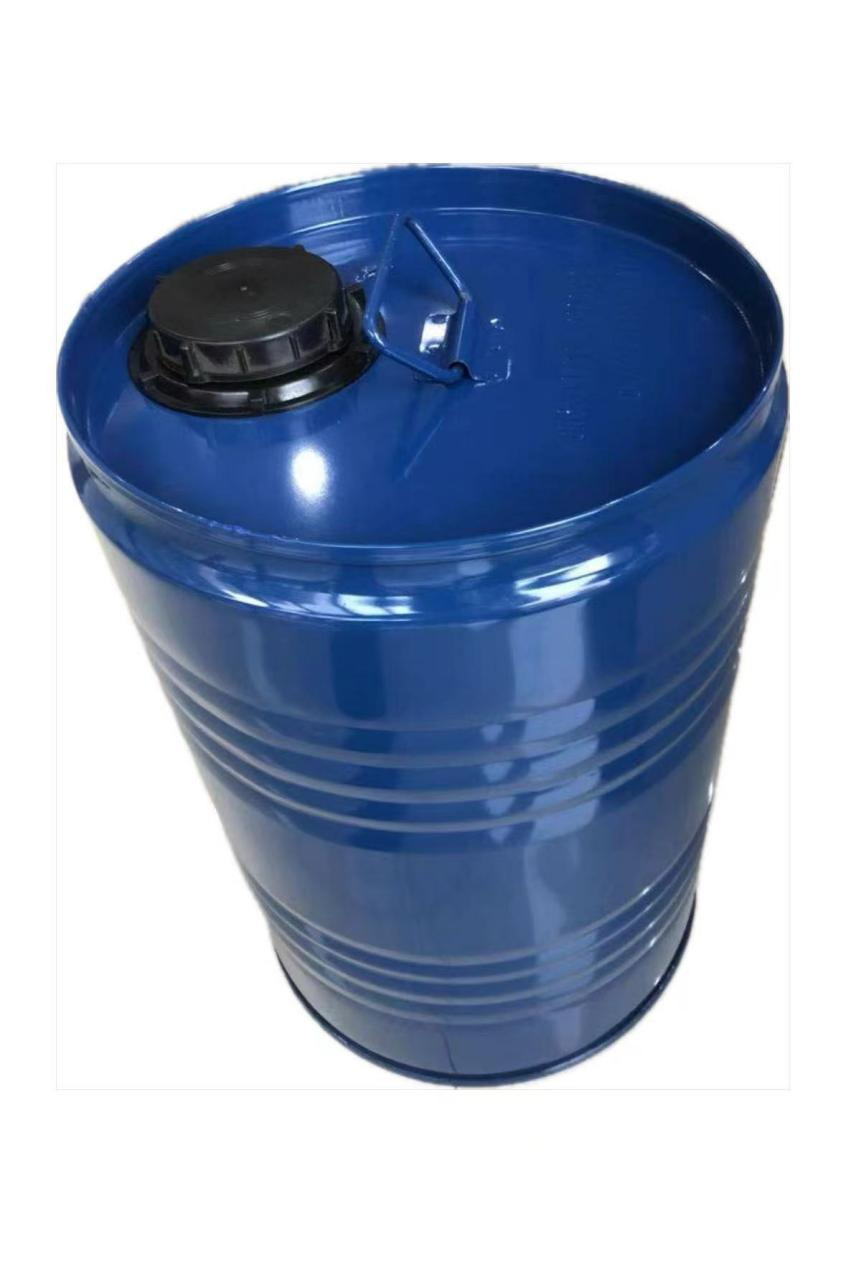

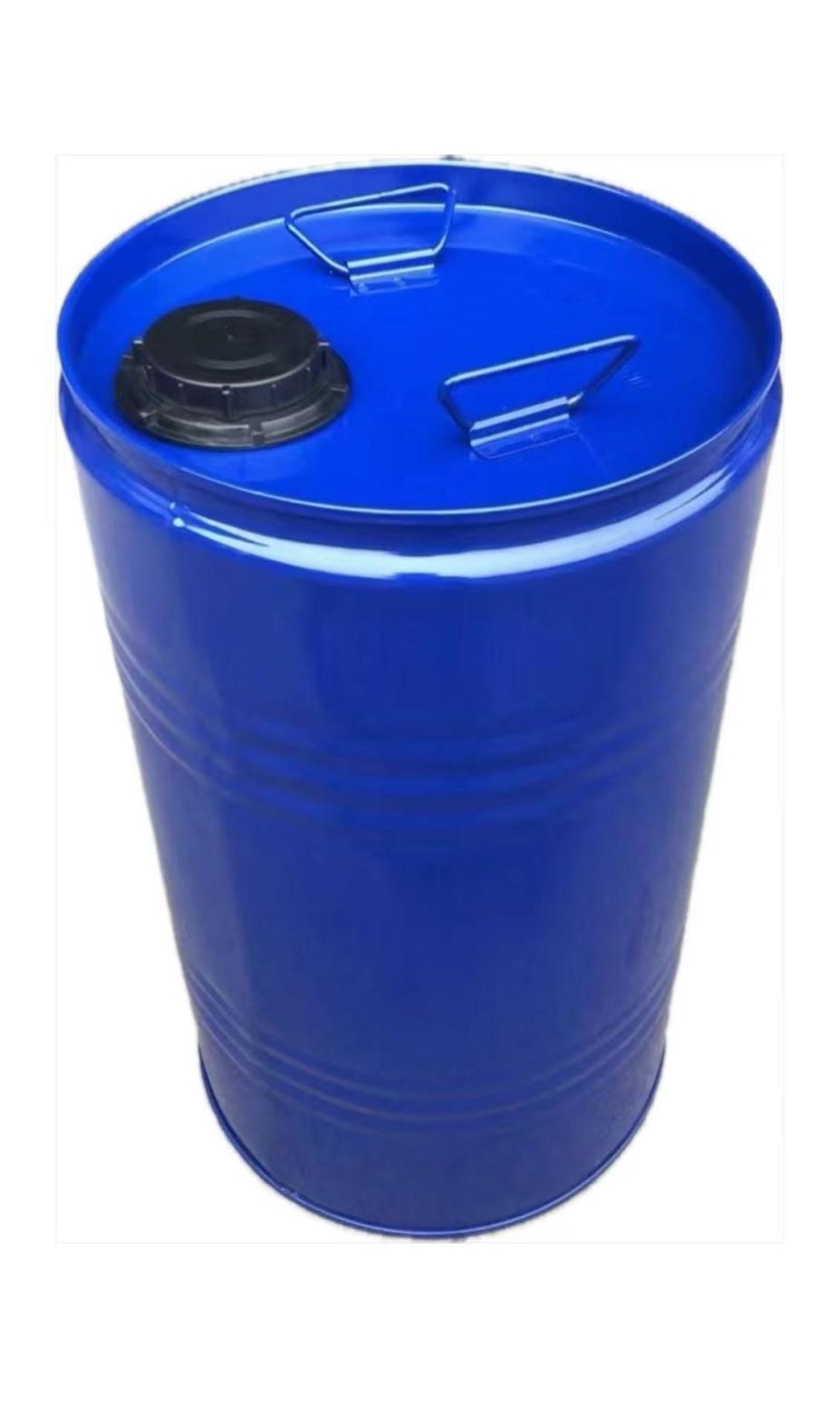

A composite barrel composed of a steel barrel shell and a plastic inner liner, which can hold products such as strong acids and bases
In addition to the commonly used steel plate thickness of 0.5mm~0.8mm, iron drums will also be manufactured using different steel plate thicknesses and appearances according to customer needs.
● Barrel appearance: ring reinforcement, W expansion reinforcement, W expansion reinforcement with ring reinforcement.
Product Name | Specifications（mm） |
Thickness | Outside diameter | Height |
20L Steel plastic composite bucket | 0.8 | 286±3 | 400±3 |
25L Steel plastic composite bucket | 0.8 | 310±3 | 390±3 |
30L Steel plastic composite bucket | 0.8 | 310±3 | 470±3 |
35L Steel plastic composite bucket | 0.8 | 320±3 | 540±3 |
50L Steel plastic composite bucket | 0.8 | 365±3 | 575±3 |
60L Steel plastic composite bucket | 0.8 | 370±3 | 640±3 |
100L Steel plastic composite bucket | 1.0 | 465±3 | 690±3 |
The above are 20~120L steel plastic composite drums, which are commonly used types and specifications by our company's customers. Our company can also customize steel plastic composite drums of any size between 20~120L according to customer needs.
