Details：

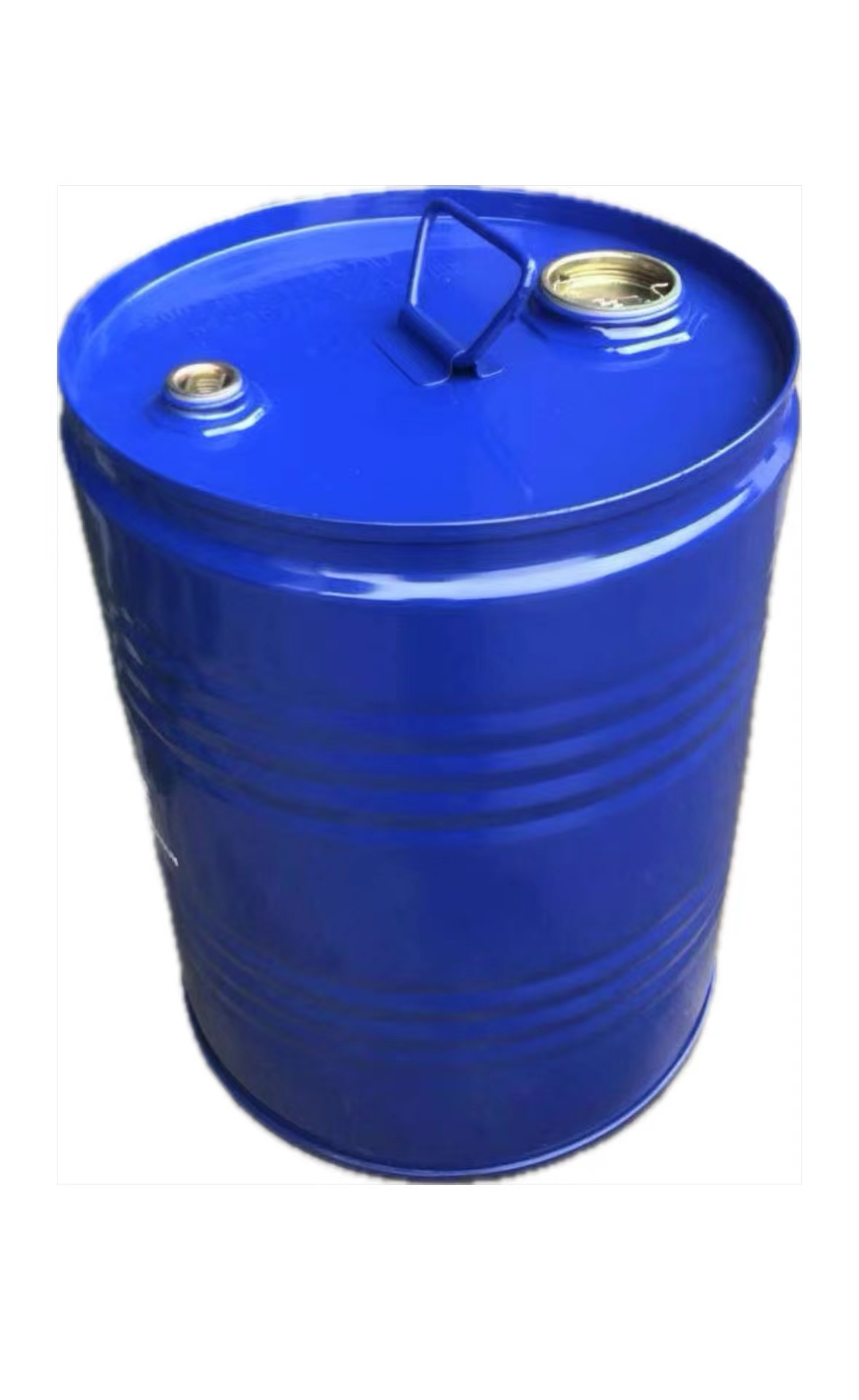

Suitable for small quantities of high priced products and easy to carry and use, can be welded with handles according to customer specifications.

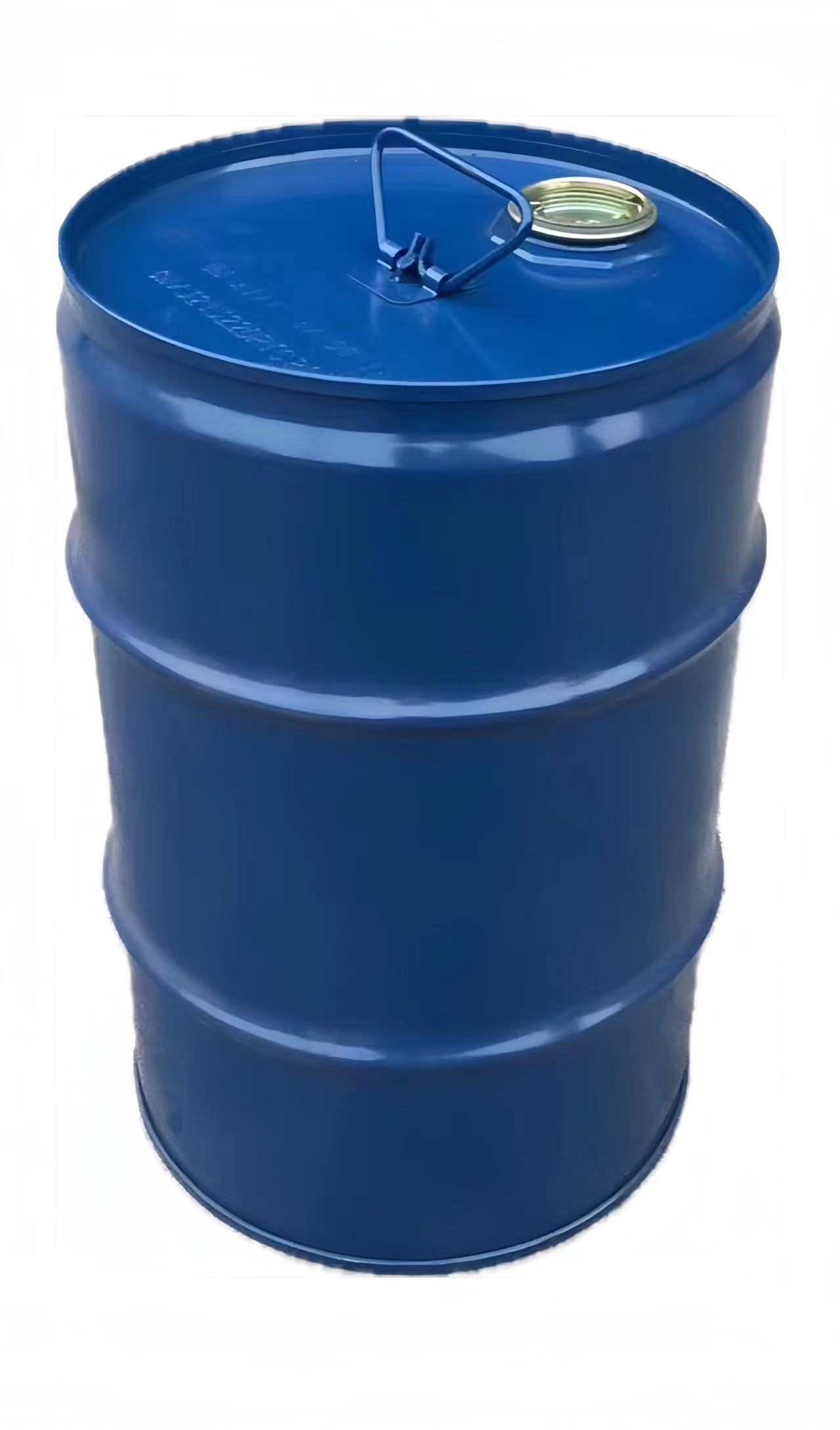

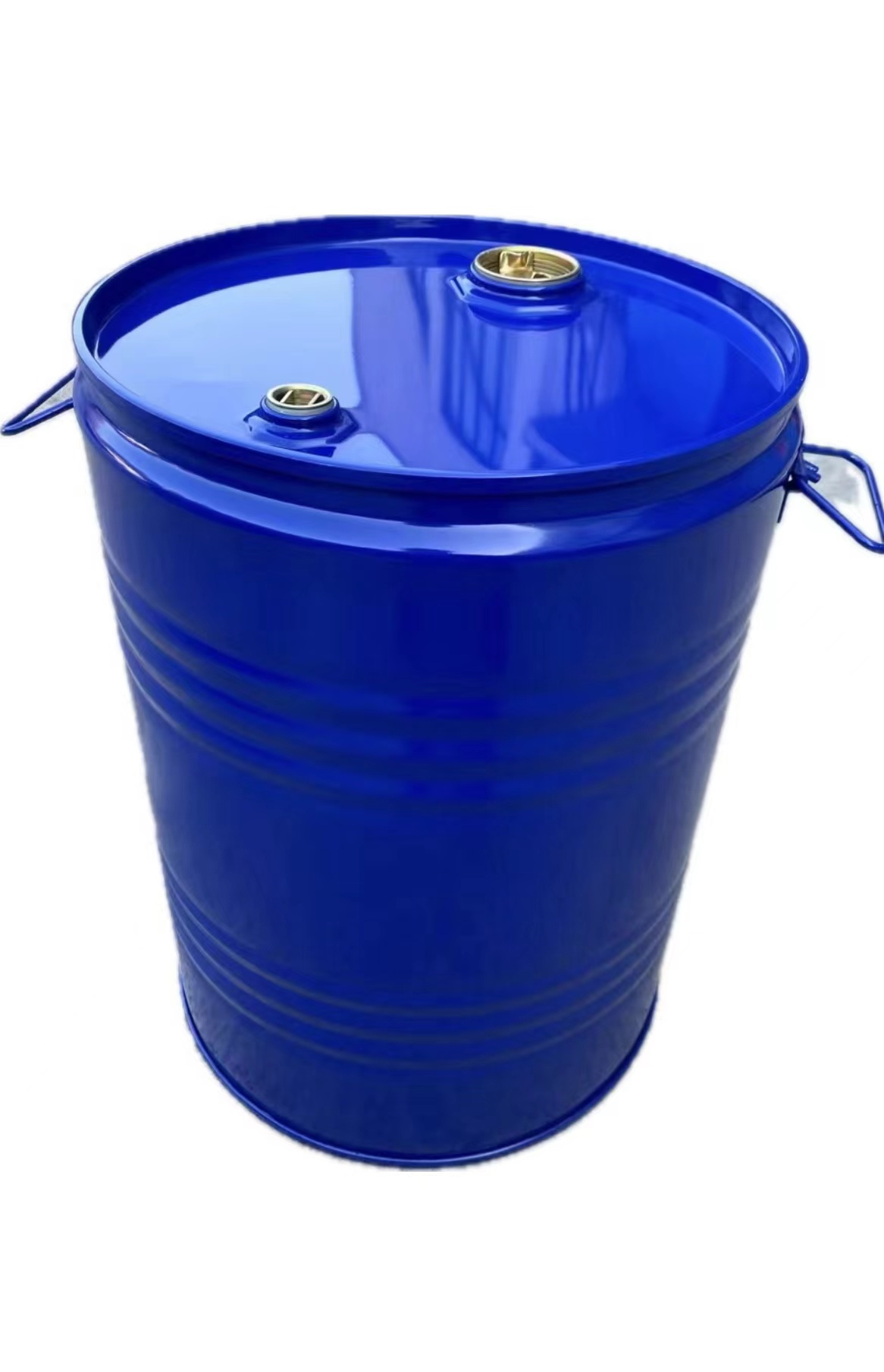

20~120L closed iron barrel: The top cover is equipped with large and small openings, and to meet the usage requirements of some customers, handles can also be welded on both sides of the barrel body.
Steel raw materials comply with CNS-9278/JISG-3141/ISO-3574 specifications
The iron bucket is designed and manufactured according to the specifications of CNS-9446
● Certified by UN (Dangerous Packaging Container)
Suitable for filling: various petrochemical related products (high viscosity resins, chemicals, lubricating butter), edible oils, fruit juices, honey, powders, etc.
In addition to the commonly used steel plate thickness of 0.5mm~0.6mm, iron drums will also be manufactured using different steel plate thicknesses and appearances according to customer needs.
● Barrel appearance: Ring reinforcement, W expansion reinforcement, W expansion reinforcement with ring reinforcement, shrink bottom bucket, no expansion reinforcement (straight board bucket).
The interior of the iron bucket can be sprayed with anti rust paint and corrosion-resistant epoxy resin according to customer needs.
Product Name | Specifications（mm） |
Thickness | Outside diameter | Height |
20L Closed iron bucket | 0.6 | 272±3 | 385±3 |
25L Closed iron bucket | 0.6 | 315±3 | 380±3 |
30L Closed iron bucket | 0.6 | 270±3 | 535±3 |
35L Closed iron bucket | 0.6 | 306±3 | 480±3 |
50L Closed iron bucket | 0.6 | 380±3 | 480±3 |
60L Closed iron bucket | 0.6 | 388±3 | 610±3 |
The above are 20~120L closed iron drums, which are commonly used types and specifications by our company's customers. Our company can also customize closed drums of any size between 20~120L according to customer needs.
