Details：
Suitable for powder, dye and other products, and easy to carry and use. Welding handles can be added according to customer specifications.

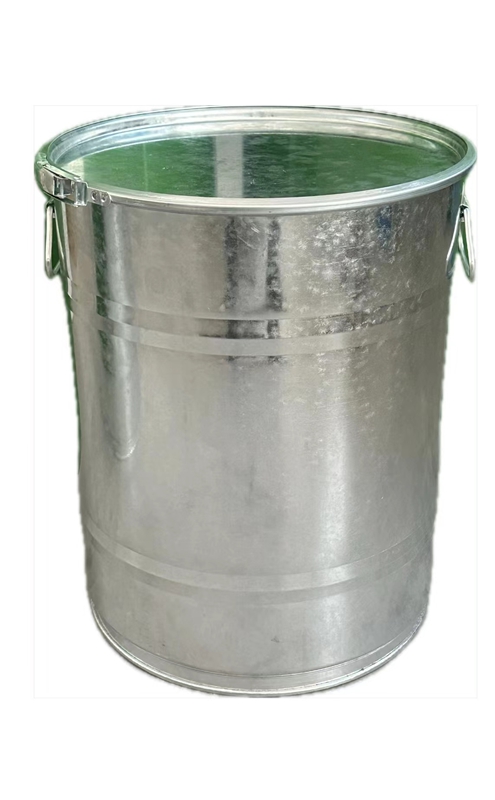

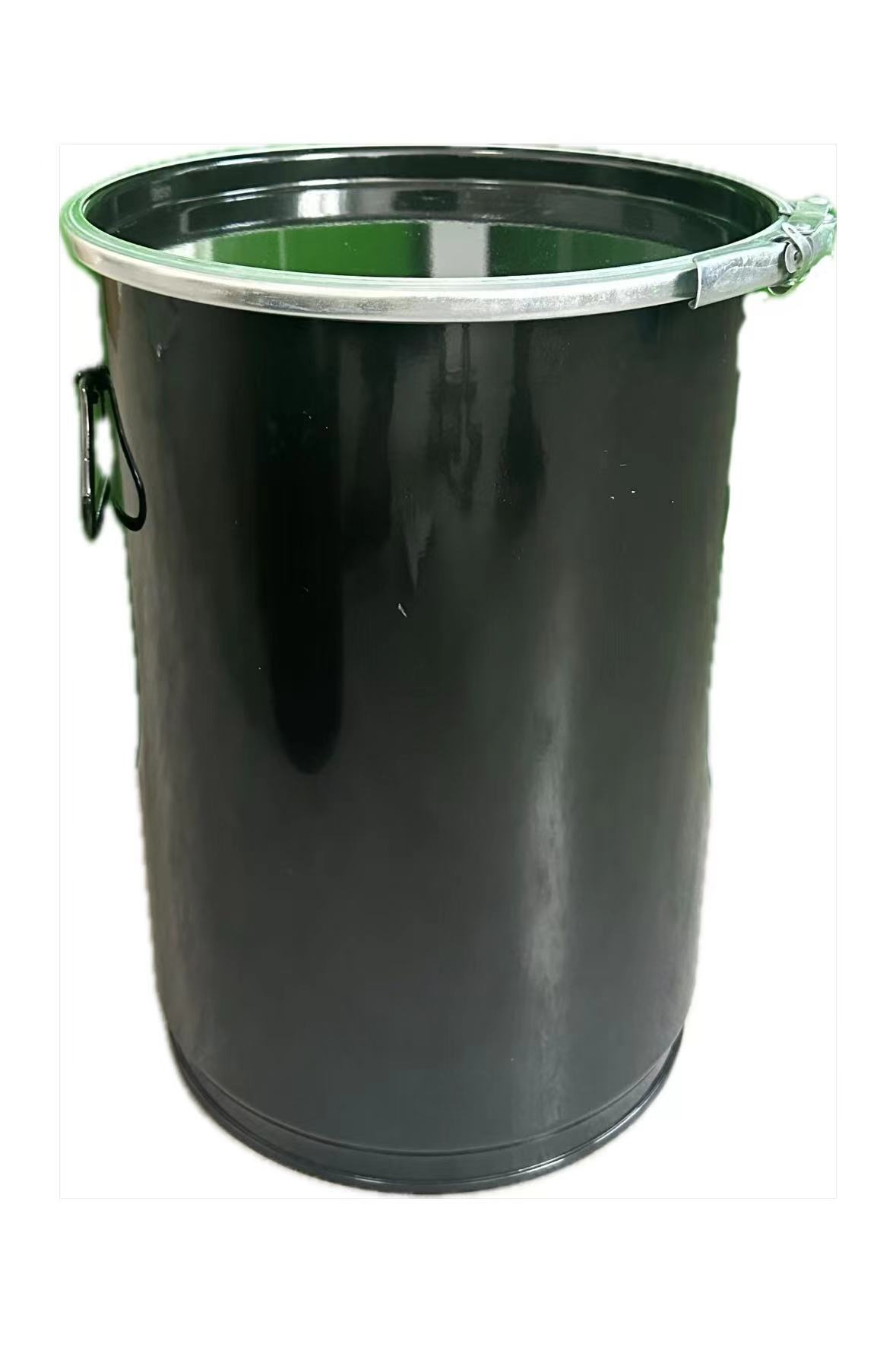

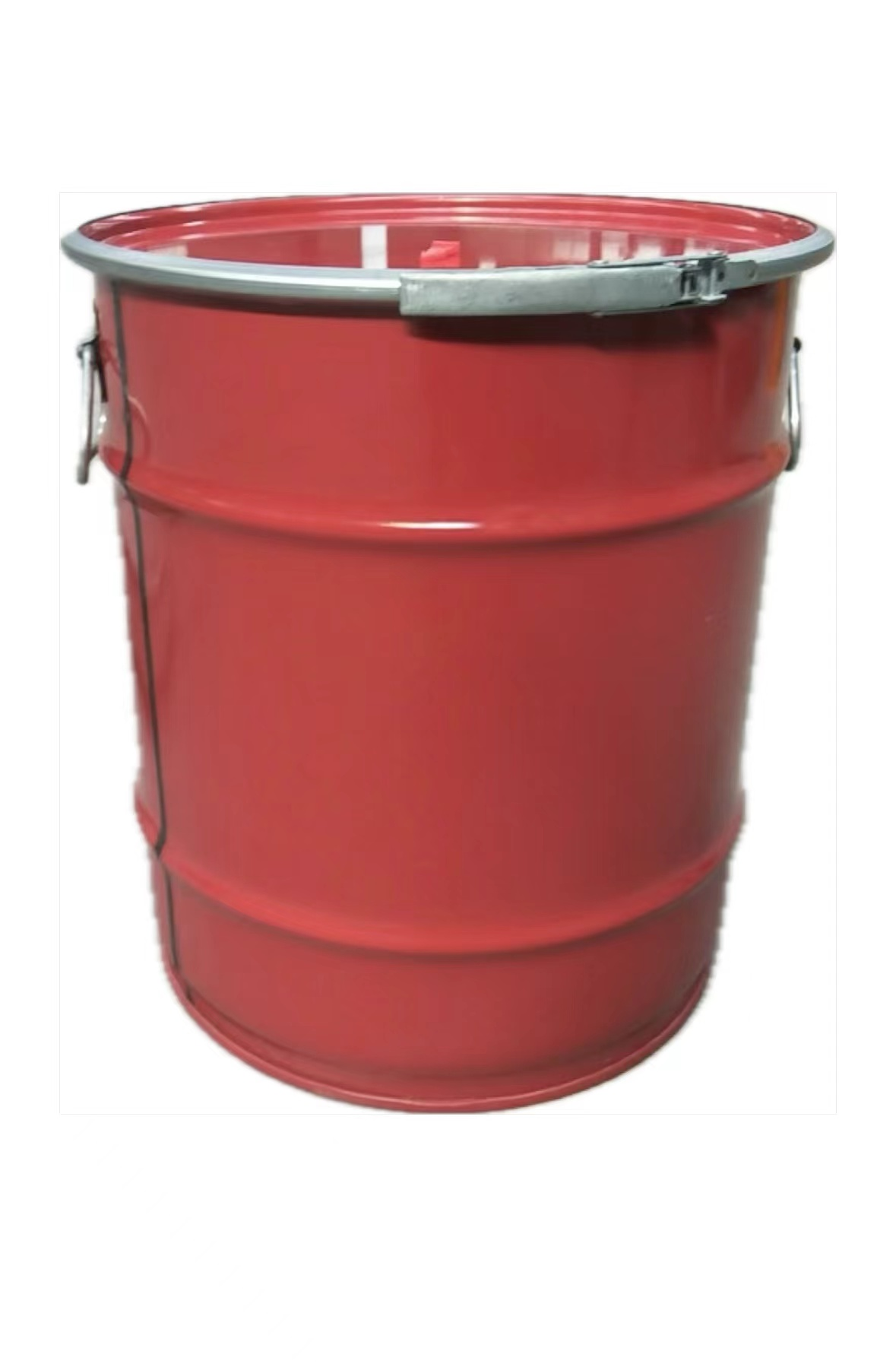

20~120L Open Iron Bucket: The top cover is a retractable lid. To meet the usage requirements of some customers, there can also be large and small openings at the top cover, and handles can be welded on both sides of the bucket body.
● Steel raw materials comply with CNS-9278/JISG-3141/ISO-3574 regulations
● The iron bucket is designed and manufactured according to the regulations of CNS-13626
● Certified by UN (Dangerous Packaging Container)
● Suitable for filling various petrochemical related products (high viscosity resins, chemicals, lubricating butter), inks, edible oils, fruit juice, honey, screws, powders, sludge, etc
● In addition to the commonly used steel plate thickness of 0.6mm~0.8mm, iron drums are also manufactured using different steel plate thicknesses and appearances according to customer needs.
● Appearance of the bucket: ring reinforcement, W expansion reinforcement, W expansion reinforcement with ring reinforcement, bottom shrinking bucket, no expansion reinforcement (straight board bucket).
● Use a wrench style barrel clamp when the lid is closed.
Common specifications:
Product Name | Specifications（mm） |
Thickness | Outside diameter | Height |
20L open iron bucket | 0.35 | 285±3 | 365±3 |
25L open iron bucket | 0.5 | 315±3 | 400±3 |
285±3 | 480±3 |
30(35)L open iron bucket | 0.5 | 315±3 | 480±3 |
40L open iron bucket | 0.5 | 355±3 | 480±3 |
50L open iron bucket | 0.6/0.8 | 400±3 | 475±3 |
65L open iron bucket | 0.6/0.8 | 380±3 | 600±3 |
360±3 | 670±3 |
80L open iron bucket | 1.0 | 395±3 | 720±3 |
The above are 20~120L open iron drums, which are commonly used by our company's customers. Our company can also customize any size of open iron drums between 20~120L according to customer needs
